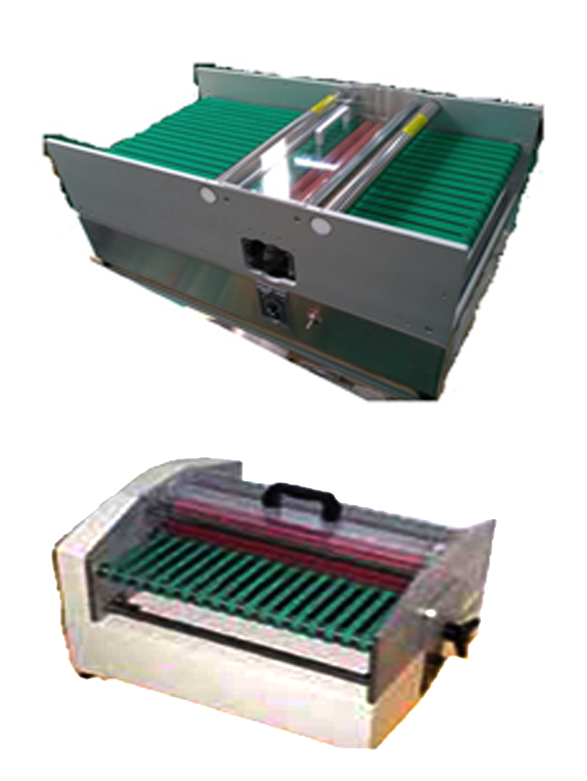

Small size & Super thin plate Cleaner
- Special for small size and very thin plate (or fin) cleaning.
- Smallest size and highest CP value cleaner in the market.
- No adhesive roll needed. Lower operational cost.
- Table size and light weight. Easy to move when necessary.
- Japan made clean rollers. Provide excellent reliability and effectiveness.
- Special design conveyor for LCD/PCB clean room. Low noise and no dust generated.

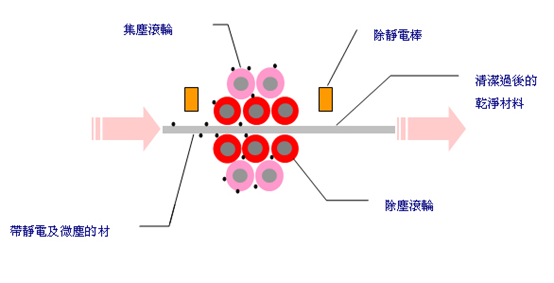

- Patent design. The most compact size cleaner with 10 clean rollers. Providing the best cleaning quality.
- Allowing the thinnest (< 0.02mm) materials cleaning. The best performance cleaner in the market.
- Double sides clean.
Sticky wheel matching type
Product specifications
| Model |
EC series |
| Clean rollers |
6 |
| Adhesive rolls |
4 |
| Clean broad thickness |
0.02~ 3 mm |
| Effective clean width |
300 ~ 500 mm |
| Conveying speed |
1~ 20m/min |
| Inlet/Outlet conveyor |
YES |
| EMC bottom |
YES |
| Volume count unit |
YES |
| Input Voltage |
AC 220V 50/60Hz |
