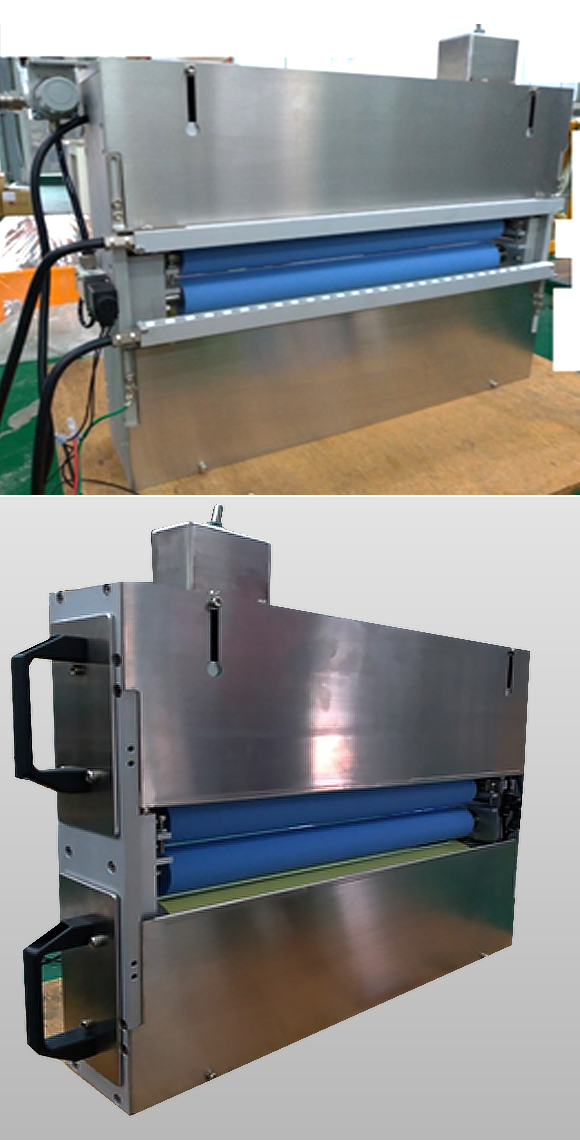

Roll to Roll Thin Fin Cleaner(Inline)
- Special design for roll to roll thin fin cleaning request.
- Special drawers structure for easy replace adhesive rolls.
- Japan made clean rollers. Provide excellent reliability and effectiveness.
- Compact size. Easy to integrate on the production line.
- Easy adjust the air pressure on the adhesive rolls. Maximum the cleaning ability.
- Allocated the static eliminator at the inlet and outlet side. Enhance the cleaning effectiveness.
- Solid and firm structure. Enduring over 100m/min high speed operation.
- Suitable for wide range thin fin size.
- Single / Double size cleaning.

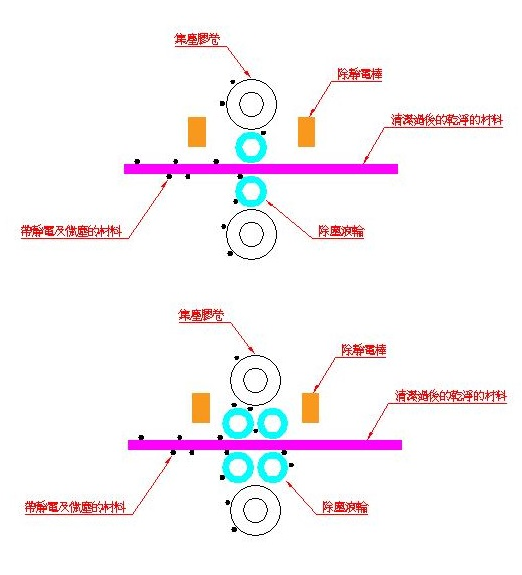

Sticky wheel matching type
Product specifications
| Model |
CWF series |
| Cleaning roller |
2 ~ 4 |
| Adhesive roll |
2 |
| Clean fin thickness |
0.02 ~ 0.1 mm |
| Effective clean width |
350 ~ 1800 mm |
| Static Eliminator |
YES |
