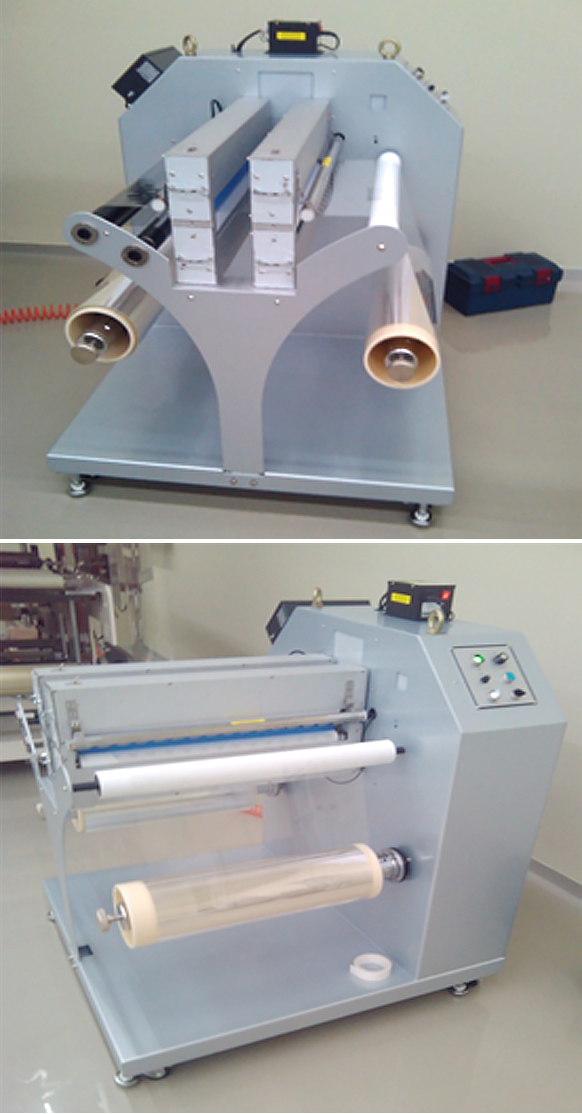

Roll to Roll Thin Fin Cleaner (Standard)
- Special design for roll to roll thin fin cleaning request.
- Special drawers structure for easy replace adhesive rolls.
- Japan made clean rollers. Provide excellent reliability and effectiveness.
- Equipped with Japan Mitsubishi tension controller and German EL edge finder. Ensure high quality cleaning and precise performance.
- Easy adjust the air pressure on the adhesive rolls. Maximum the cleaning ability.
- Allocated the static eliminator on the inlet and outlet side. Enhance the cleaning effectiveness.

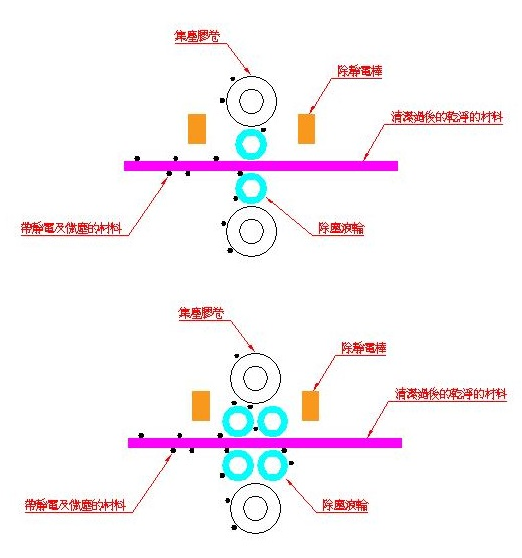

- Double sides cleaning.
Sticky wheel matching type
Product specifications
| Model |
YT series |
| Clean rollers |
4~8 |
| Adhesive rolls |
4 |
| Clean broad thickness |
0.02 ~ 0.1 mm |
| Effective clean width |
300 ~ 1000 mm |
| Conveying speed |
2 ~ 25m/min |
| Tension controller |
YES, Mitsubishi (Japan) |
| Automatic edge finder |
YES, EL (Germon) |
| Static Eliminator |
YES |
| Linear velocity monitor |
YES |
| Air pressure adjustable |
YES |
| Input Voltage |
AC 220V 50/60Hz |
