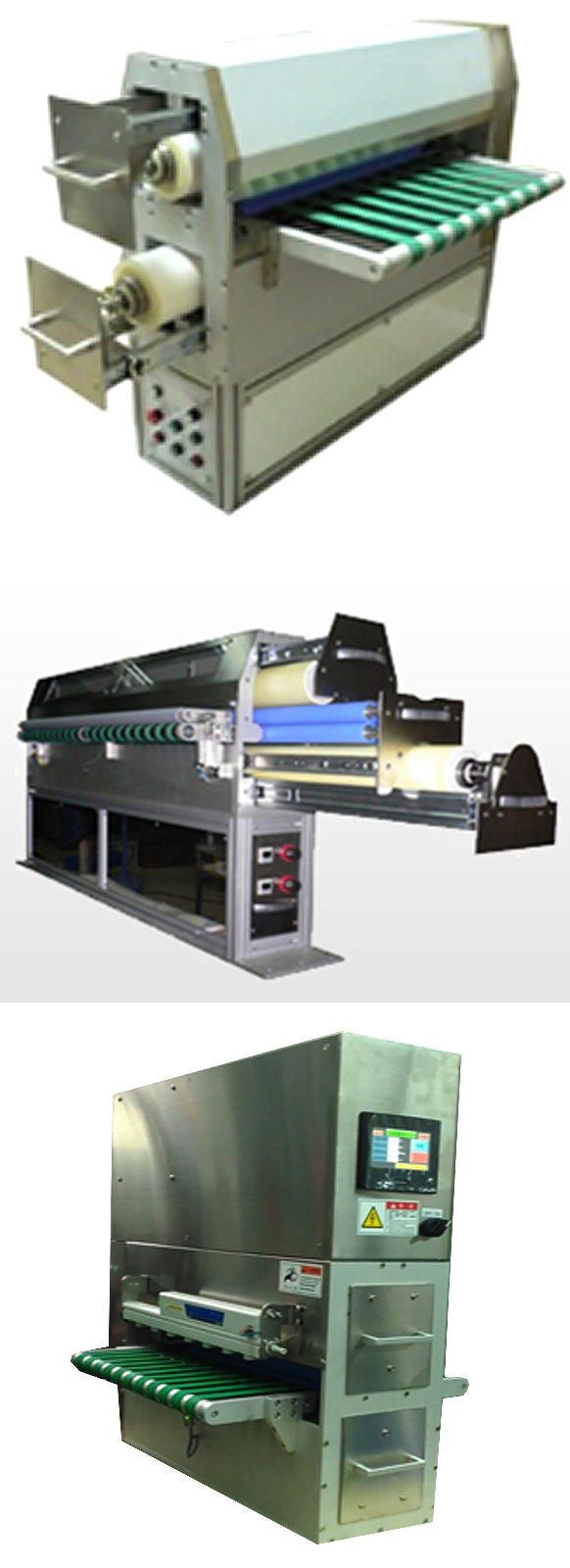

Inline Plate Cleaner

  • Standard, multiusability inline plate cleaner. Suitable for LCD, PCB, CCL…etc. industries.
  • Special drawers structure for easy replace adhesive rolls.
  • With dry contact or PLC control unit. Easy to integrate with the production line and operating the cleaner from the remote side.
  • Replace the adhesive rolls without shutdown the cleaner.
  • Japan made clean rollers. Provide excellent reliability and effectiveness.
  • Special design conveyor for LCD/PCB clean room. Low noise and no dust  generated.
  • Easy adjust the air pressure on the adhesive rolls. Maximum the cleaning ability.
  • Allocated the static eliminator on the inlet and outlet side. Enhance the cleaning effectiveness.
  • Various cleaning rollers and adhesive rolls combination. Easy to meet wide range materials requires.
  • Double sides cleaning.
Sticky wheel matching type

Product specifications



Model CW series
Clean rollers 4~8
Adhesive rolls 2~4
Clean broad thickness 0.1 ~ 8 mm
Effective clean width 300 ~ 1300 mm
Conveying speed 2 ~ 25m/min
Static Eliminator YES
Volume count unit YES
EMC bottom YES
Air pressure adjustable YES
Input Voltage AC 220V 50/60Hz
