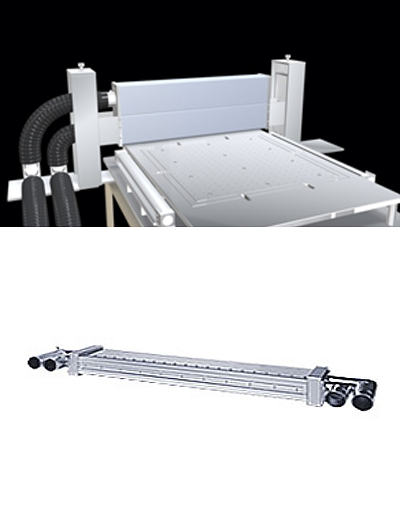

Dry Type Cleaner for Flat Material
- Dry type, non-contact cleaner with ultrasonic air vibration air knife. 99% removal of particles down to 3 μm
- Non-contact cleaning. Suitable for flat materials with fragile surface, such as LCD base glass, CCL, Optical thin fin or wafer…etc.

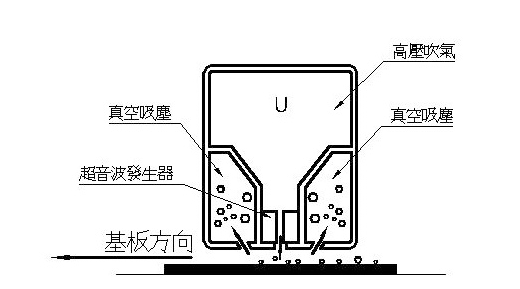

- With VPV-F ultrasonic air vibration air knife，generate strong ultrasonic air flow to vibrate the air on the surface of the flat materials. High pressure vacuum remove the particles simultaneously.
- Efficient and fast way to clean flat materials.
- Japan made high pressure air blower. Provide excellent reliability and effectiveness.
- Allocated the static eliminator on the inlet and outlet side. Enhance the cleaning effectiveness.
- Few consumables needed. Very low operational cost.
- Stable cleaning effectiveness. No frequently replacement of consumables needed.
- Single / double cleaning.
Product operation
Product specifications
| Model |
AWF series |
| Clean Head width |
1 ~ 50m/min |
| Conveying speed |
14 ~ 20KPa |
| Operational air pressure |
True HEPA Filters |
| Static Eliminator |
YES |
