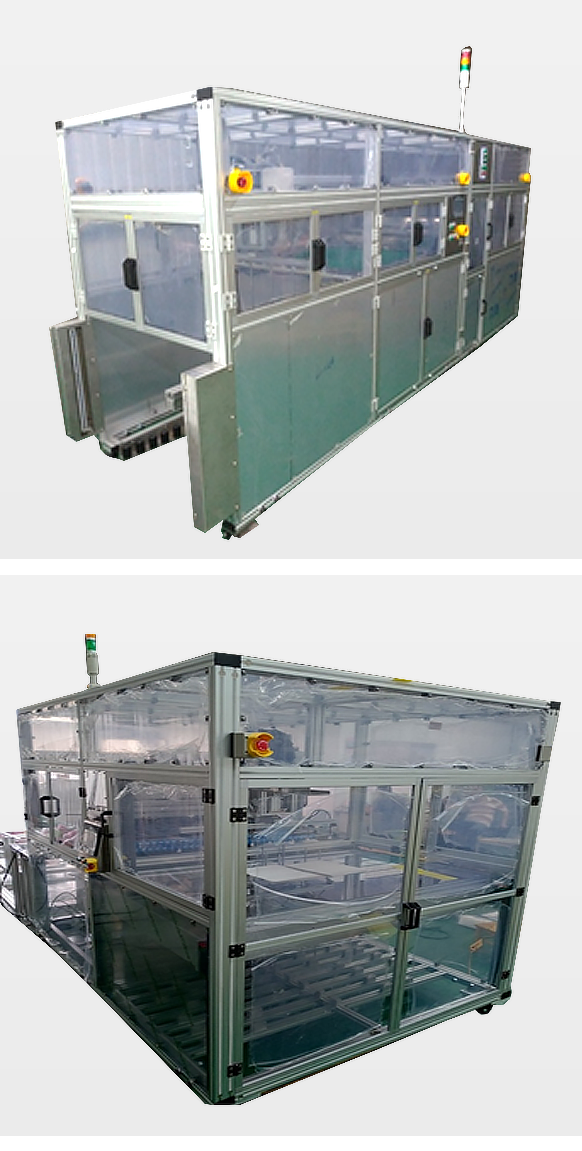

Level-Shifter, Plate Releasing and Collecting Machine
- Special design for LCD/PCB flat materials releasing /collecting requirements.
- With 2-axis robot arm and precise positioning level-shift, providing the best efficiency solution.
- Patented level-shifter design, avoiding the problem of position sliding as taking the plates.
- Multiple inlet/outlet design, support manual or trolley to put or take the plates.
- Flexible level-shifter design, small or large size can be release and collect at the same shifter.
- Japan made air pressure parts. Provide excellent reliability and effectiveness.
- 7” or above color HMI, easy for user to operate.
- Optional chuck function, ensuring the plate be transit smooth without any deviation.
- Fully compliant with LCD/PCB environment protection regulation.
Product specifications
Model |
LUR series |
Servo motor |
Ashikawa or Oriental motor |
Catching Width |
200mm ~ 2000mm |
Speed of catching |
1 ~ 8sec/per plate |
Central control unit |
Mitsubishi FX / Q series PLC |
